Have you ever wondered what actually happens behind the scenes of your hot tub?
How is the water kept clean and hygienic so that you can relax without a care in the world at any time?
The answer lies in an often overlooked but indispensable component: the hot tub filtration system . This true hero of water purification performs its duties day after day to ensure crystal-clear bathing pleasure.
But how does a hot tub filtration system actually work?
What components are involved and how do they interact?
And most importantly: What do you need to do to keep your investment in top condition?
In this article, we'll take you on an exciting journey through the fascinating world of hot tub filter technology. Learn how modern systems like the Steinbach 25N filter system impress with innovative features and clever operation.
We'll explain step by step what's important for installation, operation, and maintenance. With our tips and tricks, you'll become an expert on crystal-clear water and can keep your hot tub in top condition for years to come.
Intrigued?
Then immerse yourself in the fascinating world of filter technology and discover everything your hot tub filter system can do for you.

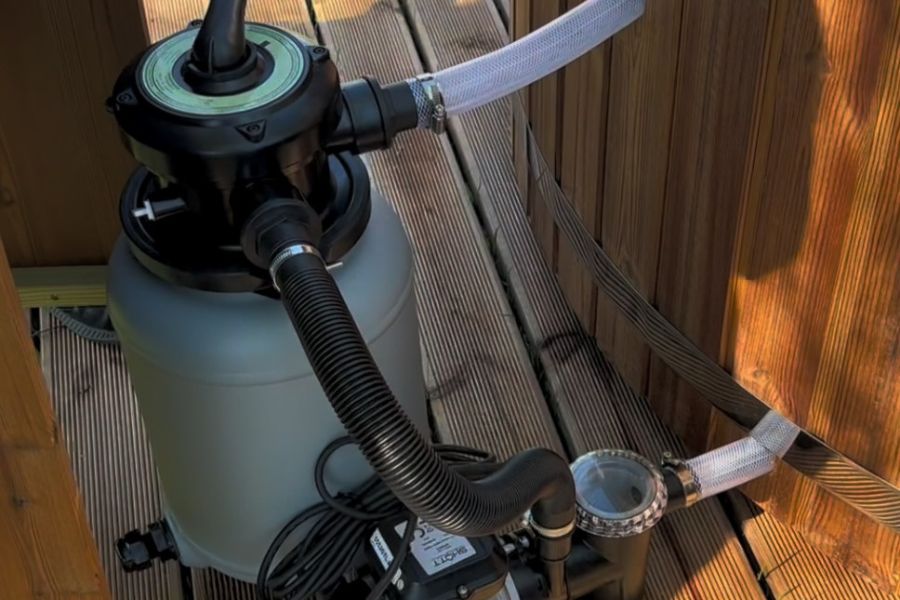

Hot Tub Filter System Steinbach 25N
Components and operation of the Steinbach 25N filter system
The Steinbach 25N hot tub filter system is a powerful and compact solution for water treatment, specially designed for hot tubs and whirlpools with a water capacity of up to 25 m³.
The main components of the system are as follows:
1. Filter vessel with filter balls
The heart of the Steinbach 25N is the filter tank, which is filled with special filter balls instead of conventional quartz sand. These are made of high-quality polyethylene and offer a significantly larger surface area than sand.
As the water flows through the tank, dirt particles and turbidity substances get stuck to the filter balls.
2. High-performance circulation pump
The integrated 250W circulation pump draws in the pool water and pumps it through the filter tank at a rate of 5.5 m³ per hour. This ensures optimal circulation and effective filtration of the entire water volume.
3. User-friendly 7-way valve
The filter tank features a 7-way valve for convenient control of the various operating modes. Functions such as filtering, backwashing, rinsing, draining, circulating, and closed can be selected by turning the valve handle.
4. Integrated pressure gauge for pressure monitoring
The pressure gauge attached to the filter tank allows for easy monitoring of the filter pressure. An increase in pressure indicates that the filter balls are clogged with dirt particles and require cleaning.
5. Connection sets for common hose sizes
The hot tub filter system comes with connection sets for 32/38 mm hoses. This allows for easy and secure connection to the hot tub's inlet and outlet.
Operation of the Steinbach 25N filter system
For commissioning, the system is connected to the hot tub using the supplied hose sets.
Set the 7-way valve to "Filter" and switch on the pump. The pool water will now circulate continuously through the filter tank, where impurities are reliably filtered out.
Regularly check the pressure on the manometer. If it rises noticeably, the filter balls need cleaning. You can remove the filter balls from the filter tank and wash them in the washing machine.
Thanks to its advanced filter technology with filter balls and user-friendly operation, the Steinbach 25N hot tub filter system ensures consistently crystal-clear and hygienically perfect water in your hot tub. Its robust construction and high-quality workmanship make it a reliable, all-in-one solution for effective water purification.
Operating modes of the hot tub filter system
The 7-way valve of the Steinbach 25N hot tub filter system offers the following operating modes:
1. Filter
In this standard setting, water is drawn from the pool, passed through the filter balls in the tank, cleaned, and then pumped back into the hot tub. This filtration setting should be the default and run for 6-8 hours daily, depending on usage.
2. Backwash
The backwashing process only applies to filter sand or filter glass. Filter balls are not backwashed; instead, they are washed in a washing machine.
3. Rinse
After backwashing, a rinse cycle of approximately one minute is performed. During this cycle, water is rinsed in the normal flow direction to remove loosened dirt particles and turbidity from the filter system and pipes. The system is then switched back to "Filter".
4. Circulate
In this setting, the water is only circulated without passing through the filter tank. This can be used, for example, to quickly mix added water treatment products.
5. Empty
For draining the pool water via the pump, e.g., when winterizing the hot tub. The water is only removed and not returned.
6. Closed
All inlets and outlets are closed. This setting is selected to open the filter tank, e.g., for filling with filter balls or for inspection.
7. Rinse
As with the operating mode of the same name under point 3. After winter operation of the hot tub or a longer period of inactivity, backwashing with rinsing should be carried out before the first filtration.
Correct use of the different operating modes ensures effective, trouble-free water treatment and optimizes the lifespan of the hot tub filter system.
Connecting the hot tub to the filtration system
The following points must be observed to correctly connect the two hoses to the Steinbach 25N hot tub filter system:
1. Pump inlet (suction side)
- The hose from the skimmer or bottom drain of the hot tub is connected to the pump inlet.
- The inlet is usually located on the front of the pump and is marked with "IN" or an arrow symbol pointing towards the pump.
- The input port usually has a larger diameter than the output.
2. Pump outlet (pressure side)
- The hose that returns the filtered water to the hot tub is connected to the pump's outlet.
- The outlet is usually located on the top of the pump and is marked with "OUT" or an arrow symbol pointing away from the pump housing.
- The outlet port usually has a smaller diameter than the inlet.
3. Filter tank
- The pump outlet is connected to the inlet of the filter tank. This connection is usually located on the side of the tank and directs the water into the tank.
- The outlet of the filter tank, where the purified water leaves the tank, is connected via a hose to the inlet nozzles of the hot tub to return the filtered water to the pool.
4. Screws and seals
- All hose connections should be sealed with the supplied fittings and seals to prevent leaks.
- The union nuts must be tightened by hand, but without overtightening the threads.
- Flat gaskets or O-rings must be used when connecting the hoses and checked for correct fit.
In summary, the hose runs from the pool to the pump's inlet (suction side), from there to the filter tank's inlet, and then back into the hot tub via the filter tank's outlet. The correct flow direction is essential for the proper functioning of the hot tub's filter system.
It is recommended to consult the enclosed installation instructions during the connection process, as these illustrate each step. If you have any questions or difficulties, you should consult a qualified installer to ensure proper commissioning and prevent damage to the hot tub filter system or the hot tub itself.
Are the hoses connected incorrectly?
If the two hoses of the hot tub filter system are accidentally connected incorrectly, the following consequences will occur:
Impaired filtering function
The reversed connection reverses the intended flow direction of the water through the hot tub filter system. Instead of drawing in the pool water, passing it through the filter balls, and returning it to the hot tub clean, the water is pumped in the opposite direction. This severely impairs or completely prevents filtration. Dirt particles and turbidity are no longer effectively removed from the water, leading to a rapid deterioration of water quality.
Possible damage to the pump
The circulation pump of the hot tub filter system is designed for a specific flow direction. If it is operated against this direction for an extended period, damage to the seals, impeller, and bearings can occur. In extreme cases, the pump may fail, potentially requiring a costly replacement.
Disruption of the water balance
The malfunctioning hot tub filter system disrupts the sensitive water balance of the hot tub. The incorrect water flow can lead to the water treatment chemicals no longer being properly distributed in the tub. The function of the automatic pH and disinfectant dosing system is also impaired. Consequently, the water is at risk of becoming contaminated with germs and pathogens, posing a health risk to bathers.
Troubleshooting recommendations
- Switch off the pump immediately and connect the hoses correctly according to the installation instructions.
- Check the water in the hot tub for quality and chemical content, correct or replace if necessary.
- Visual inspection of the pump for mechanical damage; if any abnormalities are found, consult a specialist company.
- After correcting the hose connections, perform a manual backwash cycle.
- Carefully observe the function and performance of the filter system in the coming days.
Accidentally swapping the filter hose connections significantly impairs the water quality in the hot tub and can cause technical damage to the system. Therefore, it is crucial to ensure correct connections according to the instructions during installation. Regular visual inspections help to identify and correct connection errors early on, before consequential damage occurs.
What do I need the pressure gauge for?
The pressure gauge plays an important role in monitoring and operating the hot tub filtration system:
Purpose of the pressure gauge:
- The pressure gauge measures the pressure in the filter system and displays it visually.
- The degree of contamination of the filter balls in the filter tank can be assessed based on the displayed pressure.
- A low pressure indicates a clean filter, while a high pressure indicates that the filter is clogged and needs cleaning.
- Regularly checking the pressure gauge allows you to determine the optimal time for cleaning the filter balls.
Consequences of not installing a pressure gauge:
- Without a pressure gauge, there is no visual control over the condition of the filter system.
- An increase in filter pressure due to dirt deposits is not detected, which impairs the filter performance.
- Necessary cleaning of the filter balls is not carried out in a timely manner, which leads to reduced water quality.
- In case of heavy soiling, the pump is at risk of being overloaded, as it has to work against increased resistance.
- In extreme cases, a completely clogged filter can interrupt the water flow and damage the pump.
Recommendations:
- The pressure gauge should definitely be installed according to the instructions to ensure effective filter monitoring.
- Even when retrofitting, care must be taken to ensure that the pressure gauge is positioned in the correct place in the filter system.
- The pressure gauge must be easily visible to the operator to allow for regular monitoring.
- If there are any uncertainties regarding the assembly or interpretation of the pressure values, a specialist should be consulted.
The pressure gauge is an indispensable instrument for monitoring and ensuring filter performance. Continuous monitoring of the filter pressure allows malfunctions to be detected and rectified early.
Correct installation and regular reading of the pressure gauge contribute significantly to maintaining optimal water quality and protecting the hot tub filter system.
What do I need the Lagoon UV lamp for with my hot tub?
The Lagoon UV lamp is a useful addition to the water treatment system in your hot tub. It offers the following advantages:
1. Disinfection without chemicals
The UV lamp uses ultraviolet light to kill pathogens, bacteria, and viruses in the water. This physical disinfection method reduces the need for chemicals like chlorine or bromine. This is not only more pleasant for swimmers but also protects the environment.
2. Clear and odorless water
UV light oxidizes organic compounds in water that can cause cloudiness and unpleasant odors. Combined with conventional filtration, the UV lamp ensures crystal-clear and fresh-smelling water – completely without the typical chlorine odor.
3. Protection against diseases
Pathogens can multiply rapidly in warm water. UV disinfection offers additional protection against waterborne infections such as Legionella, Escherichia coli, and Pseudomonas. This is a particularly important safety feature for immunocompromised individuals or in commercial settings.
4. Easy installation and maintenance
The Lagoon UV lamp is integrated into the hot tub filter system and operates automatically as soon as the pump is running. Its compact design makes it easy to retrofit even existing systems. The lamp only needs to be replaced annually – a small effort for the added hygiene benefit.
5. Cost savings
The reduced need for water treatment products lowers the ongoing operating costs of the hot tub. The gentle UV disinfection also extends the lifespan of the tub and equipment, saving on repair and replacement investments in the long run.
In summary, the Lagoon UV lamp offers an effective and environmentally friendly way to maintain the highest water quality in your hot tub. The combination of UV disinfection and conventional filtration creates a pleasant and safe bathing experience for you and your guests. Retrofitting is therefore highly recommended.
How often does the filter need to be cleaned or the filter balls changed?
Cleaning and replacing the filter balls are crucial for maintaining optimal water quality in your hot tub. Here are the most important points regarding filter cleaning and filter ball replacement:
Cleaning the filter balls:
The filter balls should be cleaned regularly to maintain their filtering performance and prevent bacterial growth. Cleaning intervals depend on usage intensity and water quality.
- With normal use (2-3 times per week): Clean every 2-4 weeks
- For intensive use (daily): Clean every 1-2 weeks
- In areas with hard or iron-rich water: More frequent cleaning may be necessary.
For cleaning, the following is recommended:
1. Switch off the filter system and empty the filter tank.
2. Soak and rinse the filter balls with a special filter cleaner.
3. If heavily soiled, wash the filter balls in the washing machine without detergent.
4. Allow the filter balls to dry and return them to the filter kettle.
Replacing the filter balls:
Even with regular cleaning, the filter balls wear out over time and lose their filtering capacity. Replacement is therefore recommended at the following intervals:
- Under normal use: Every 2-3 years
- With intensive use: Annually
- In case of damage or visible signs of wear: Immediate replacement
When replacing the filter balls, please note the following:
1. Use only high-quality original products suitable for the hot tub filter system.
2. Ensure correct fill level (refer to manufacturer's instructions)
3. Rinse new filter balls thoroughly before filling to remove dust.
4. After replacing the filter system, put it back into operation and check for leaks.
Regular inspection:
In addition to scheduled cleaning and replacement intervals, the filter balls should also be checked during weekly hot tub maintenance. Look for signs of wear, discoloration, or clumping. These indicate reduced filter performance and require cleaning or premature replacement.
Regular maintenance of the filter balls ensures that your hot tub is always filled with crystal-clear and hygienically clean water. If in doubt, please consult the operating instructions for your hot tub filter system or contact a water treatment specialist.
Summary:
- Clean the filter balls every 2-4 weeks (with normal use).
- Replace filter balls every 2-3 years (with normal use)
- Use only original products and ensure correct fill levels.
- Weekly visual inspection for wear and tear and soiling
- If you have any questions, consult a specialist company.
With a water volume of 1,500 liters, how long should the filter system run daily?
Recommended daily filter runtime for 1,500 liters of water volume
For a hot tub with a water capacity of 1,500 liters, the hot tub filter system should run for 4 to 6 hours daily to ensure optimal water quality. This recommendation is based on the following factors:
Turnover rate:
Effective filtration requires that the entire pool water be circulated and cleaned several times a day. The Steinbach 25N filter system has a pump capacity of 5.5 m³ per hour. With a water volume of 1.5 m³ (1,500 liters), a runtime of 4-6 hours achieves 3 to 4 times the pool volume per day.
Usage intensity:
The recommended filter duration is based on average use of the hot tub by 2-4 people on 3-4 days per week. For more intensive use, such as daily use or by a larger number of bathers, the filter run time should be increased accordingly to ensure adequate water purification.
Energy efficiency:
A daily runtime of 4-6 hours represents a good compromise between effective filtration and energy consumption. Longer filter runtimes lead to higher electricity consumption, while shorter intervals can negatively impact water quality. Using a timer allows the hot tub filter system to be activated automatically at the desired times.
For a hot tub with a water volume of 1,500 liters, a daily filter run time of 4-6 hours is recommended with the Steinbach 25N filter system. This recommendation applies to average usage and can be adjusted to individual needs. Regular water analyses and visual inspections help to optimize filter times and ensure consistently high water quality.
Conclusion: The right filtration system is crucial
A high-performance and reliable hot tub filter system is essential for hygienically perfect and crystal-clear water in your hot tub. With the Steinbach 25N filter system, you receive a well-designed complete package that combines all the important functions in one compact unit.
Thanks to the efficient circulation pump, the optimally sized filter tank with filter balls, and the user-friendly 7-way valve, you can easily manage daily water treatment. Regular cleaning of the filter balls and monitoring of the filter pressure via the integrated pressure gauge ensure consistently high filtration performance.
For improved water quality and safety, we recommend adding a UV lamp to the system. This will not only reliably remove suspended particles and turbidity, but also physically eliminate pathogenic germs and bacteria.
